| Art. no. | 117.009.00.1 |
| Product material | Glass |
| Power consumption | ≤ 2 W |

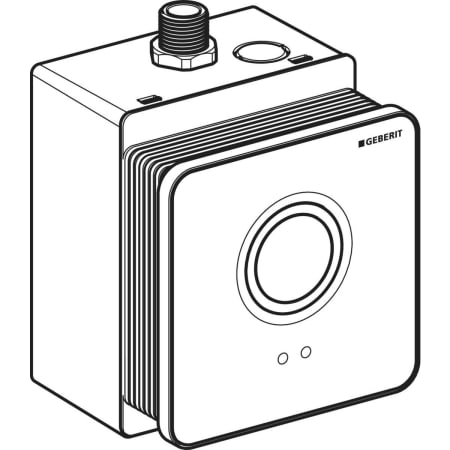

Geberit urinal flush control with electronic flush actuation, mains operation, Sensor Black actuator plate, round
My list (0)
Technical data
Degree of protection IPX6 |
Nominal voltage 110–240 V AC |
Mains frequency 50–60 Hz |
Operating voltage 6 V DC |
Flow pressure 0.5–8 bar |
Water test pressure max. 10 bar |
Flow rate at 100 kPa / 1 bar with flow limiter 0.12 l/s |
Minimum flow pressure 0.5 bar |
Calculated flow rate 0.12 l/s |
Interval flush, factory setting 0 h |
Interval flush time, factory setting 6 s |
Detection time, factory setting 7 s |
Flush time, adjustment range 4–16 s |
Degree of protection IPX6 |
Nominal voltage 110–240 V AC |
Mains frequency 50–60 Hz |
Operating voltage 6 V DC |
Flow pressure 0.5–8 bar |
Water test pressure max. 10 bar |
Flow rate at 100 kPa / 1 bar with flow limiter 0.12 l/s |
Minimum flow pressure 0.5 bar |
Calculated flow rate 0.12 l/s |
Interval flush, factory setting 0 h |
Interval flush time, factory setting 6 s |
Detection time, factory setting 7 s |
Flush time, adjustment range 4–16 s |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Glass panel
Mounting frame
Infrared control, premounted on mounting frame
Solenoid valve
Power supply unit
Fastening material
