Concealed Cisterns

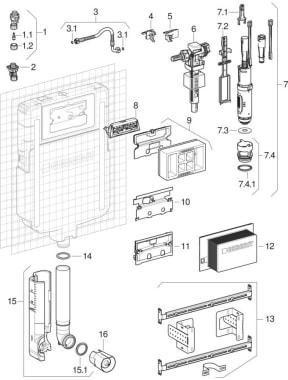

Alpha concealed cisterns 12 cm (from year of construction 2023)
Alpha concealed cisterns 12 cm (from year of construction 2023)
2023 -
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 245.418.00.1 | Geberit angle stop valve for Alpha concealed cisterns 12 cm | ||
| 1.1 | 240.925.00.1 | Geberit spindle for angle stop valve | 245.930.00.1 | |
| 1.2 | 241.857.00.1 | Geberit counternut made of plastic | ||
2 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 242.414.00.1 | Geberit angle stop valve for Sigma concealed cistern 8 cm, Delta concealed cistern 12 cm, Alpha concealed cisterns 8/12 cm and Unica/UP700 concealed cisterns | ||
| 1.1 / 2.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread | ||
| 1.2 / 2.3 | 240.347.00.1 | Geberit hand wheel for angle stop valve | ||
10 Articles
| # | Art. no. | Description | Remarks |
|---|---|---|---|
| 1 | 242.414.00.1 | Geberit angle stop valve for Sigma concealed cistern 8 cm, Delta concealed cistern 12 cm, Alpha concealed cisterns 8/12 cm and Unica/UP700 concealed cisterns | |
| 1 | 246.175.00.1 | Geberit angle stop valve for Sigma/Delta concealed cistern 12 cm and Sigma/Alpha concealed cistern 8 cm | |
| 1.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread | |
3 Articles
| # | Art. no. | Description | Replacement for |
|---|---|---|---|
| 1.1 | 242.627.00.1 | Geberit stop valve | |
| 2 | 242.634.00.1 | Geberit flush valve for Alpha concealed cistern 10 cm | |
| 2.1 | 241.167.00.1 | Geberit bracket for flush valves | |
1 Article
| # | Art. no. | Description | Replacement for |
|---|---|---|---|
| 1 | 240.705.00.5 | Geberit type 383 fill valve for concealed cisterns | 240.705.00.1 |
| 1 | Go to the spare parts page: | ||
| 1 | Go to the spare parts page: | ||
8 Articles
