| Art. no. | 224.066.00.1 |
| B | 42.4 cm |
| H | 106.5 cm |

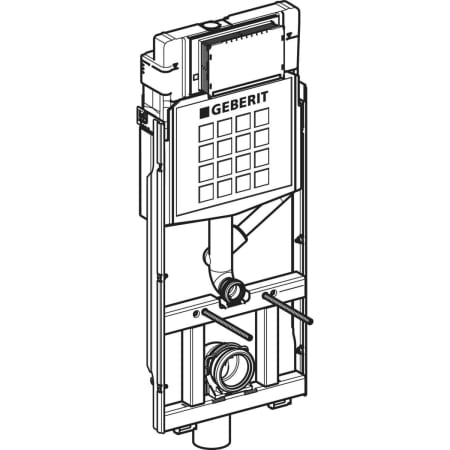

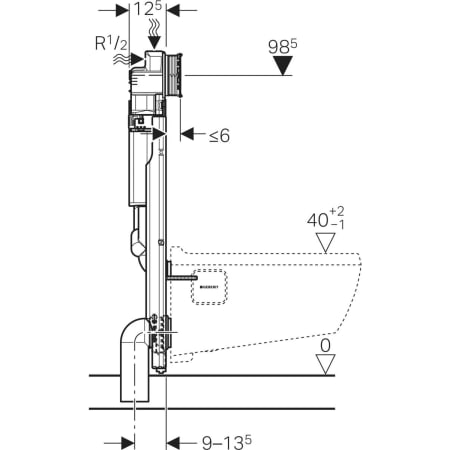

Geberit GIS element for wall-hung WC, 106.5 cm, with Sigma concealed cistern 12 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 6 / 4 l |
Flush volume large, adjustment range 3.5–7.5 l |
Flush volume small, adjustment range 2–4 l |
Flow rate at 300 kPa / 3 bar 0.16 l/s |
Minimum flow pressure 0.1 bar |
Calculated flow rate 0.09 l/s |
Product material Steel |
Height-adjustable Yes |
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 6 / 4 l |
Flush volume large, adjustment range 3.5–7.5 l |
Flush volume small, adjustment range 2–4 l |
Flow rate at 300 kPa / 3 bar 0.16 l/s |
Minimum flow pressure 0.1 bar |
Calculated flow rate 0.09 l/s |
Product material Steel |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Frame, zinc-platedFrame with four quick-action fastenersInfinitely variable height adjustment in Geberit GIS structureFrame prepared for support brackets for WC ceramic appliances with small contact surfacesConnection bend can be mounted without tools at different depths, adjustable range 45 mmWater supply connection on the rear or top centre
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
Fastening and protection material
