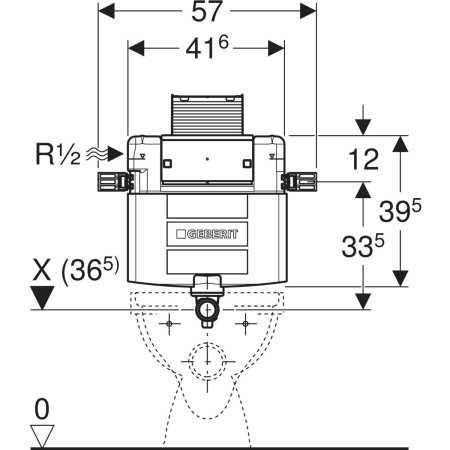

| Art. no. | 224.513.00.1 |
| B | 44 cm |
| H | 39.5 cm |

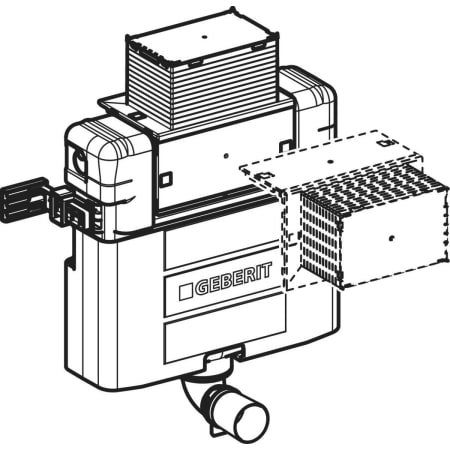

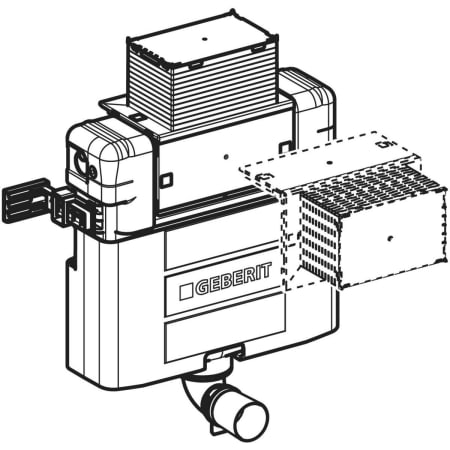

Geberit Omega concealed cistern 12 cm, 4.8 / 3 litres, installation height 82 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 4.8 / 3 l |
Flush volume large, adjustment range 3.5–7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Plastic |
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 4.8 / 3 l |
Flush volume large, adjustment range 3.5–7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Protection box for service opening
Connection bend for overflow
2 slotted flat irons
2 fixing brackets
Fastening material
