| Art. no. | 118.383.21.1 New |
| Colour / surface | chrome / glossy |
| B | 50 cm |
New

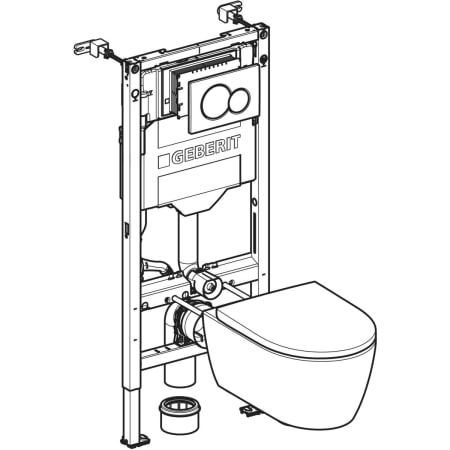

Geberit Set Element für Wand-WC, 112 cm, mit Sigma Unterputzspülkasten 12 cm, Sigma01 Betätigungsplatte, rund, iCon Wand-WC eckiges Design, TurboFlush
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 5.8 / 3 l |
Button shape round |
Product material Sanitary ceramic |
Fastening distance 18 cm |
Height-adjustable Yes |
Odour extraction unit No |
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 5.8 / 3 l |
Button shape round |
Product material Sanitary ceramic |
Fastening distance 18 cm |
Height-adjustable Yes |
Odour extraction unit No |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingFrame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 70 cmWith pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studsAlternative fastening point for wall anchorsRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosionConnection bend can be mounted without tools at different depths, adjustable range 45 mmGeberit Sigma concealed cistern 12 cm, fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class IIDual flushFront actuationImmediate post flush possible with factory settingTool-free installation and maintenance work on concealed cisternWater supply connection on the rear or top centreProtection box for service opening, can be cut to length, protects against moisture and dirtWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening option for electrical connectionWashdown WC
Scope of delivery
Geberit Duofix element for wall-hung WC
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
2 wall anchors
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
Sound insulation set
Fastening and protection material
115.770.21.5 - a-pl Sigma01 rnd dual pl bright chrome
503.045.00.1 - wWCwd w/WC-st Ge+iCn T53 Tflsh set
Accessories
Accessory overviews
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Care instructions | WC and bidet seats, urinal lids | EN and 31 others | |
Care instructions | Cleaning surfaces | EN and 28 others | |
Installation instructions | Connection set for wall-hung WC | - | |
Installation instructions | Sigma20/50 actuator plates | - | |
Installation instructions | Fastening set EFF3 | - | |
Installation instructions | WC seat with EasyMount hinges | - | |
Installation instructions | Geberit Duofix WC Sigma 12 cm, height 112, 90/110 | - |
