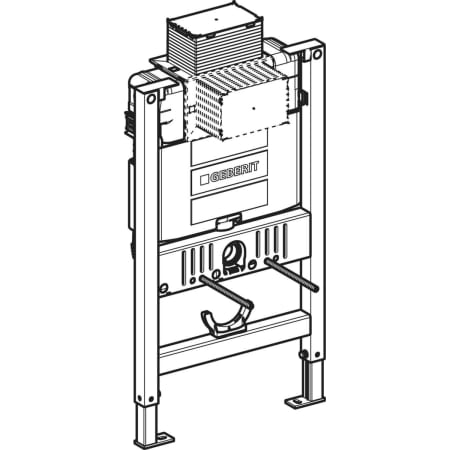

Geberit Duofix element for wall-hung WC, 82 cm, with Omega concealed cistern 12 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Operating temperature, water max. 25 °C |
Flush volume, factory setting 4.8 / 3 l |
Flush volume large, adjustment range 3.5–7.5 l |
Flush volume small, adjustment range 2–4 l |
Height-adjustable No |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Statically self-supporting frame, protected against corrosion with powder coatingFrame top openFrame with holes to receive Geberit Duofix wall anchors for elements with frame top openFrame prepared for support brackets for WC ceramic appliances with small contact surfacesGalvanized feetFeet adjustable 0–20 cm
Concealed cistern with top or front actuationConcealed cistern, fully insulated against condensationImmediate post flush possible with factory settingWater supply connection on the left or rear leftProtection cover box for service opening protects against moisture and dirtProtection box for service opening can be cut to length

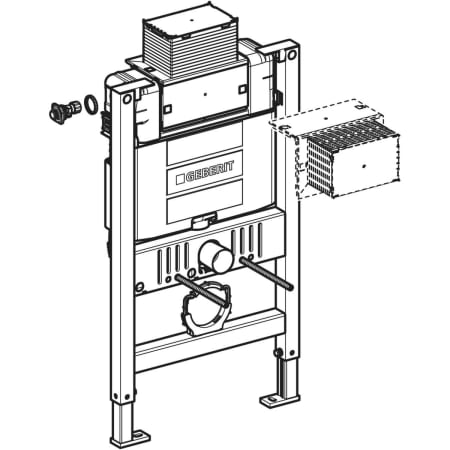

Scope of delivery
Protection box for service opening
2 protection plugs
Connection bend for overflow
2 threaded rods M12
Fastening material
