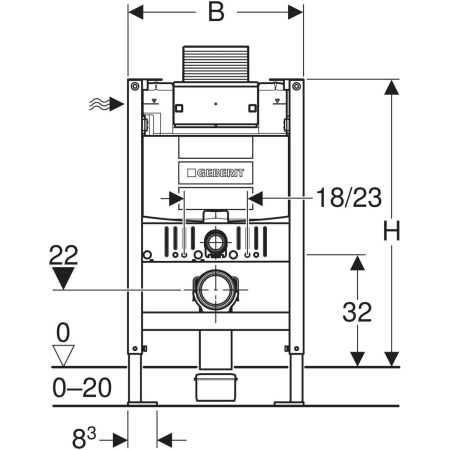

| Art. no. | 224.098.00.1 |
| B | 50 cm |
| H | 82 cm |

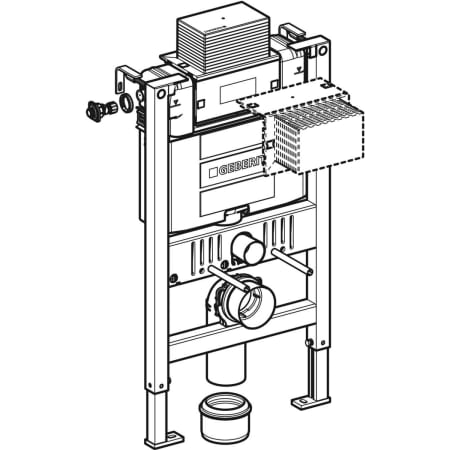

Geberit Duofix element for wall-hung WC, 82 cm, with Alpha concealed cistern 12 cm, 4.5 / 3 litres
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 4.5 / 3 l |
Flush volume large, adjustment range 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 3–4 l |
Height-adjustable Yes |
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 4.5 / 3 l |
Flush volume large, adjustment range 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 3–4 l |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Statically self-supporting frame, protected against corrosion with powder coatingFrame top openFrame with ø 9 mm drilling holes for fastening in wood frame constructionFrame with holes to receive Geberit Duofix wall anchors for elements with frame top openFrame prepared for support brackets for WC ceramic appliances with small contact surfacesGalvanized feetFeet adjustable 0–20 cm
Connection bend can be mounted without toolsConcealed cistern with top or front actuationConcealed cistern, fully insulated against condensationImmediate post flush possible with factory settingWater supply connection on the left or rear leftProtection cover box for service opening protects against moisture and dirtProtection box for service opening can be cut to length
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
2 wall anchors
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
2 protection plugs
2 threaded rods M12
Fastening material
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Installation instructions | Geberit Duofix WC Alpha 12 cm, height 82 | - | |
Installation instructions | - | ||
Maintenance manual | Alpha 12 cm concealed cistern | - |
Geberit Duofix WC Alpha 12 cm, height 82
Alpha 12 cm concealed cistern
