| Art. no. | 224.532.00.1 |

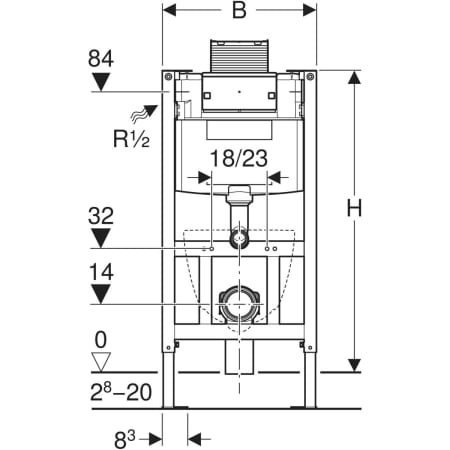

| B | 50 cm |
| H | 90 cm |

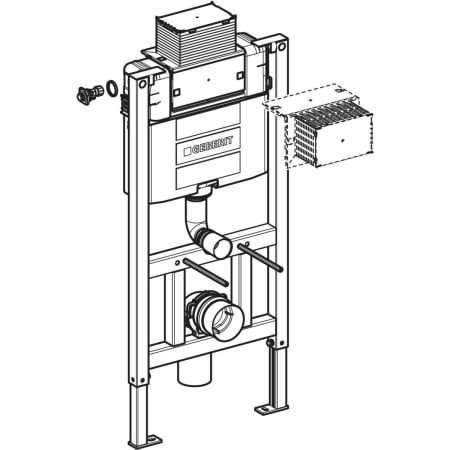

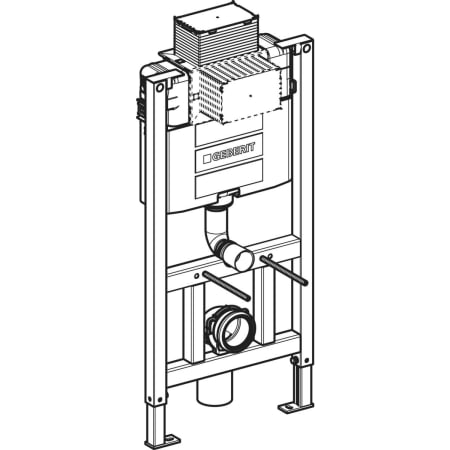

Geberit Duofix element for wall-hung WC, 90 cm, with Omega concealed cistern 12 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 6 / 4 l |
Flush volume large, adjustment range 3.5–7.5 l |
Flush volume small, adjustment range 2–4 l |
Height-adjustable Yes |
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 6 / 4 l |
Flush volume large, adjustment range 3.5–7.5 l |
Flush volume small, adjustment range 2–4 l |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Statically self-supporting frame, protected against corrosion with powder coatingFrame top openFrame with holes to receive Geberit Duofix wall anchors for elements with frame top openGalvanized feetFeet adjustable 0–20 cmConnection bend can be mounted without tools
Concealed cistern with top or front actuationConcealed cistern, fully insulated against condensationImmediate post flush possible with factory settingWater supply connection on the left or rear leftProtection cover box for service opening protects against moisture and dirtProtection box for service opening can be cut to length
Scope of delivery
Water supply connection R 1/2", with integrated angle stop valve
Protection box for service opening
2 protection plugs
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
2 threaded rods M12
Fastening material
