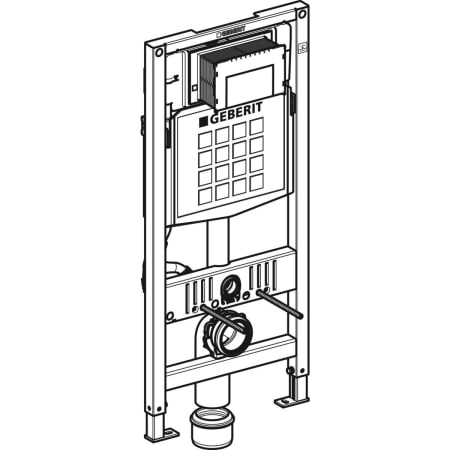

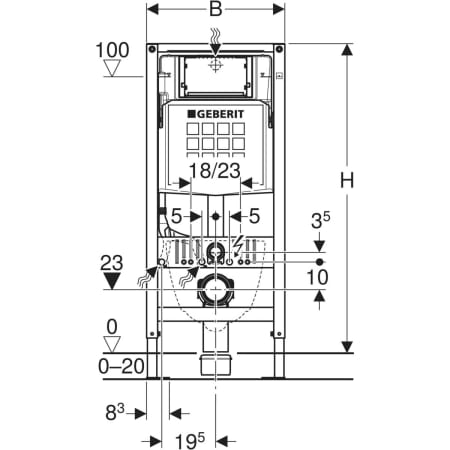

Geberit Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Operating temperature, water max. 25 °C |
Flush volume, factory setting 4.5 / 3 l |
Height-adjustable No |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Statically self-supporting frame, protected against corrosion with powder coatingGalvanized feetFeet adjustable 0–20 cmRotatable foot platesConnection bend can be mounted without toolsConcealed cistern with front actuationConcealed cistern, fully insulated against condensationImmediate post flush possible with factory setting
Adjustable flush volumeTool-free installation and maintenance work on concealed cisternWater supply connection on the rear or top centreProtection cover box for service opening protects against moisture and dirtProtection box for service opening can be cut to lengthWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening option for electrical connection
Scope of delivery
Water supply connection R 1/2", with integrated angle stop valve
Protection box for service opening
2 wall anchors
2 protection plugs
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
2 threaded rods M12
Fastening material
