| Art. no. | 224.214.00.1 |
| B | 50 cm |
| H | 112 cm |

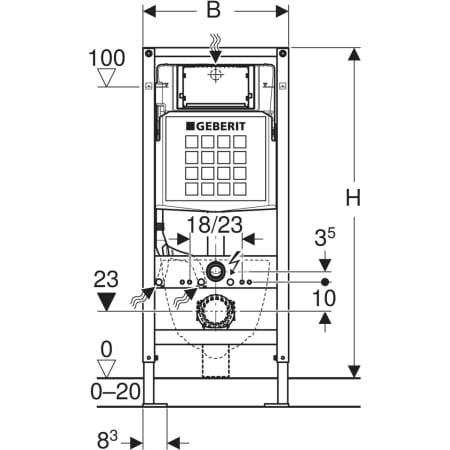

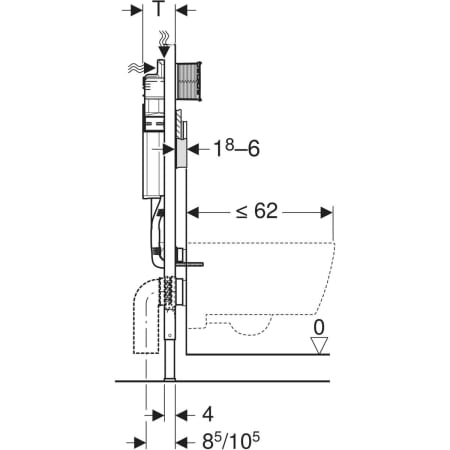

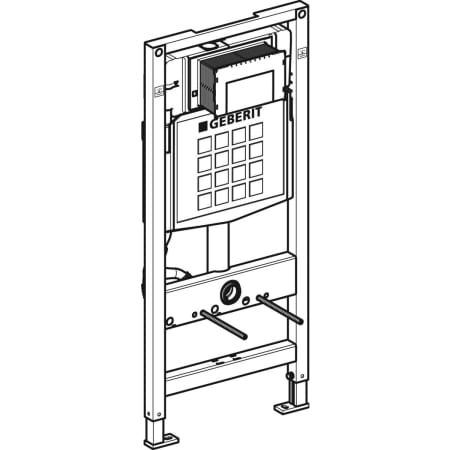

Geberit Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 4.8 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Height-adjustable Yes |
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 4.8 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Protection box for service opening
2 protection plugs
Connection bend for overflow
2 threaded rods M12
Fastening material
