| Art. no. | 150.703.00.6 |
| DN | 40 |
| d, ø | 40 mm 50 mm |

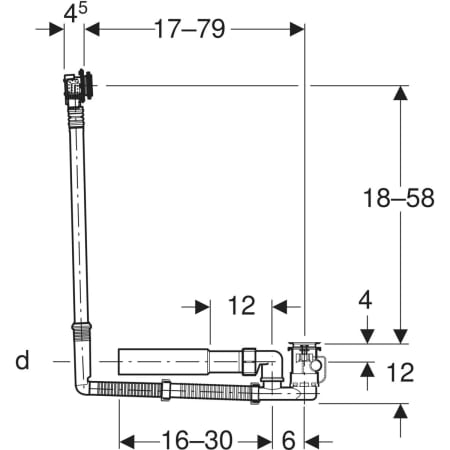

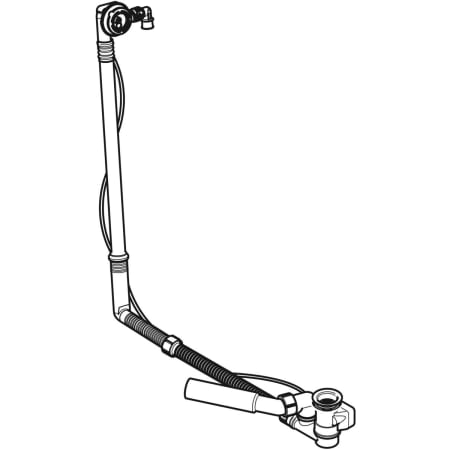

Geberit bathtub drain with turn handle and inlet, d52, length 79 cm, with connection bend, counterflow principle
My list (0)
Technical data
Appliance sound pressure level at 300 kPa / 3 bar 15 dB(A) |
Sound class 1 |
Inlet capacity at 300 kPa / 3 bar 0.35 l/s |
Overflow discharge rate 0.6 l/s |
Depth of water seal (mm) 50 mm |
Appliance sound pressure level at 300 kPa / 3 bar 15 dB(A) |
Sound class 1 |
Inlet capacity at 300 kPa / 3 bar 0.35 l/s |
Overflow discharge rate 0.6 l/s |
Depth of water seal (mm) 50 mm |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Waste outlet
Trap
Overflow head with inlet
Elbow tap connector 90° with MasterFix, 1/2", radial-sealing
Connection bend 45° made of PE-HD, ø 40 / 50 mm
Protection box
Fastening material
To order additionally
Ready-to-fit set
