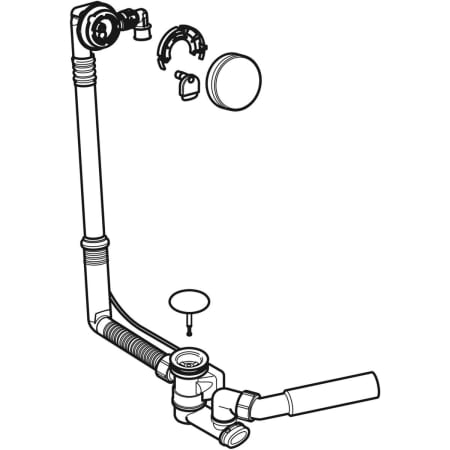

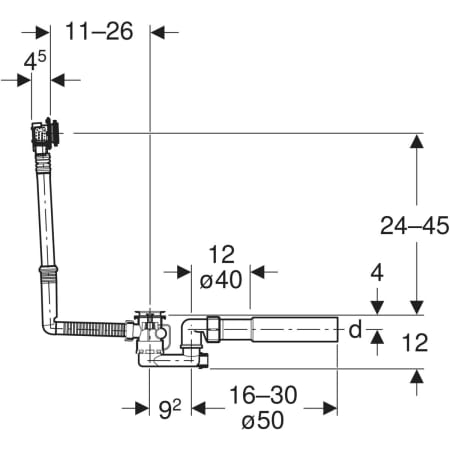

Geberit bathtub drain with turn handle and inlet, d52, length 46 cm, with ready-to-fit set and straight connector with ball joint, counterflow principle
My list (0)
Technical data
Line noise at 3 bar 15 dB(A) |
Sound class 1 |
Inlet capacity at 3 bar 0.35 l/s |
Overflow discharge rate 0.6 l/s |
Depth of water seal 50 mm |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Waste outlet
Trap
Overflow head with inlet
Elbow tap connector 90° with MasterFix, 1/2", radial-sealing
Straight connector made of PE-HD, ø 50 mm, with ball joint
Ready-to-fit set
Protection box
Fastening material
Documents
Your input does not return any results
Spare parts
Bathtub drains with turn handle actuation and inlet, d52
Bathtub drains with turn handle actuation and inlet, d52
1999 - 2023
| # | Art. no. | Description |
|---|---|---|
| 1 | 241.717.00.1 | Geberit waste outlet |
| 2 | 854.454.00.1 | Geberit connection bend with union nut made of PE: d=40–50mm |
| 2.1 | 241.995.00.1 | Geberit compression joint |
17 Articles
| # | Art. no. | Description |
|---|---|---|
| 1 | 241.717.00.1 | Geberit waste outlet |
| 2 | 854.454.00.1 | Geberit connection bend with union nut made of PE: d=40–50mm |
| 2.1 | 241.995.00.1 | Geberit compression joint |
17 Articles
