Replaces art. no. 150.702.00.1
| Art. no. | 150.702.00.6 |
| DN | 40 |
| d, ø | 40 mm 50 mm |

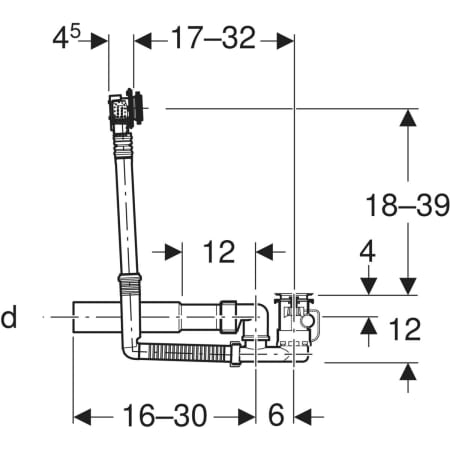

Geberit bathtub drain with turn handle and inlet, d52, length 32 cm, with connection bend, counterflow principle
My list (0)
Technical data
Appliance sound pressure level at 300 kPa / 3 bar 15 dB(A) |
Sound class 1 |
Inlet capacity at 300 kPa / 3 bar 0.35 l/s |
Overflow discharge rate 0.6 l/s |
Depth of water seal (mm) 50 mm |
Appliance sound pressure level at 300 kPa / 3 bar 15 dB(A) |
Sound class 1 |
Inlet capacity at 300 kPa / 3 bar 0.35 l/s |
Overflow discharge rate 0.6 l/s |
Depth of water seal (mm) 50 mm |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Waste outlet
Trap
Overflow head with inlet
Elbow tap connector 90° with MasterFix, 1/2", radial-sealing
Connection bend 45° made of PE-HD, ø 40 / 50 mm
Protection box
Fastening material
To order additionally
Ready-to-fit set
Accessories
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Installation instructions | Bathtub drain with turn handle and inlet installation set | EN and 31 others |
Bathtub drain with turn handle and inlet installation set
EN and 31 others
Other products
Spare parts
| # | Art. no. | Description |
|---|---|---|
| 1 | 241.717.00.1 | Geberit waste outlet |
| 2 | 854.454.00.1 | Geberit connection bend with union nut made of PE: d=40–50mm |
| 2.1 | 241.995.00.1 | Geberit compression joint |
17 Articles
| # | Art. no. | Description |
|---|---|---|
| 1 | 241.717.00.1 | Geberit waste outlet |
| 2 | 854.454.00.1 | Geberit connection bend with union nut made of PE: d=40–50mm |
| 2.1 | 241.995.00.1 | Geberit compression joint |
16 Articles
