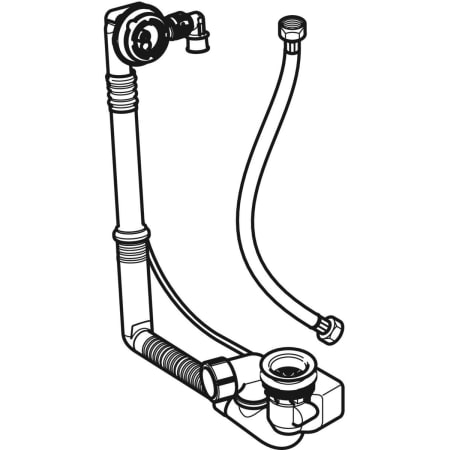

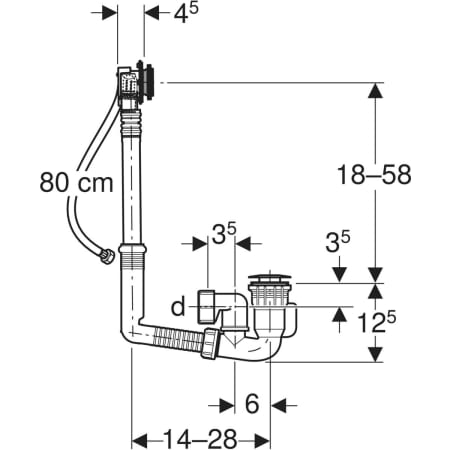

Geberit bathtub drain with turn handle and inlet, d52, length 28 cm, with vertical extension, counterflow principle

Thumbnail image
Thumbnail image
Thumbnail image
Main gallery image
Main gallery image
Main gallery image

My list (0)


Click on the icon with the 3 dots to have more options for each item.

Technical data

Line noise at 3 bar

15 dB(A)

Sound class


Inlet capacity at 3 bar

0.35 l/s

Overflow discharge rate

0.6 l/s

Depth of water seal

50 mm

Application purposes

Click on an application purpose to search more products

For bathtubs made of steel, plastic or cast ironFor custom-size bathtubsFor bathtubs with valve hole ø 52 mm


Click on a characteristic to search more products

Scope of delivery

  • Waste outlet

  • Trap

  • Overflow head with inlet

  • Elbow tap connector 90° with MasterFix, 1/2", radial-sealing

  • Connection hose 1/2", radial-sealing

  • Protection box

  • Fastening material

To order additionally

  • Ready-to-fit set


Your input does not return any results

Spare parts
