With turn handle actuation and inlet

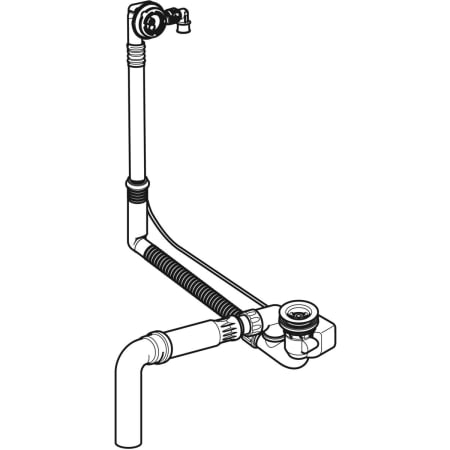

Geberit bathtub drain with turn handle and inlet, d52, length 52 cm, with straight connector with ball joint, counterflow principle

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
150.709.00.6
DN

40

56

d, ø

40 mm

56 mm

Technical data

Appliance sound pressure level at 300 kPa / 3 bar

15 dB(A)

Sound class

1

Inlet capacity at 300 kPa / 3 bar

0.35 l/s

Overflow discharge rate

0.6 l/s

Depth of water seal (mm)

50 mm

Application purposes

Click on an application purpose to search more products

For bathtubs made of steel, plastic or cast ironFor custom-size bathtubsFor bathtubs with valve hole ø 52 mm

Characteristics

Click on a characteristic to search more products

Fulfils requirements in accordance with DIN 274With overflow and inletInlet jet can be alignedDouble-sided seals on drain and overflow
Overflow head with extendible mount can be fastened

Scope of delivery

  • Waste outlet

  • Trap

  • Overflow head with inlet

  • Elbow tap connector 90° with MasterFix, 1/2", radial-sealing

  • Connection bend 90°, made of PE-HD, ø 56 mm

  • Straight connector made of PE-HD, ø 56 mm, with ball joint

  • Protection box

  • Fastening material

To order additionally

  • Ready-to-fit set

Accessories

Geberit Split ready-to-fit set, d52, for bathtub drain with turn handle and inlet

Ready-to-fit-sets for turn handle actuation and inlet

Geberit Split ready-to-fit set, d52, for bathtub drain with turn handle and inlet

3 Articles

Geberit reinforced braided hose 1/2"

Water supply connections

Geberit reinforced braided hose 1/2"

150.992.00.1
