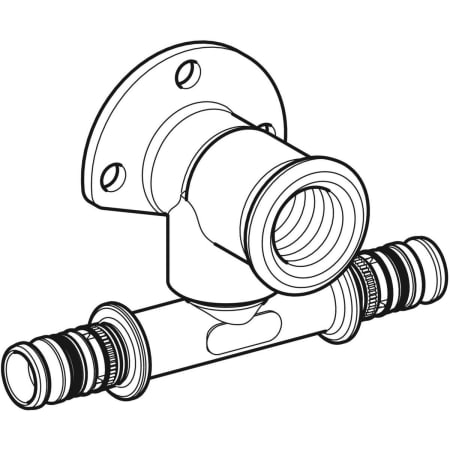

Geberit Mepla T-elbow tap connector 90°, offset

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

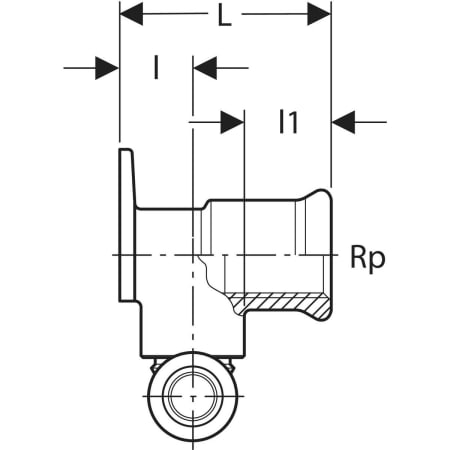

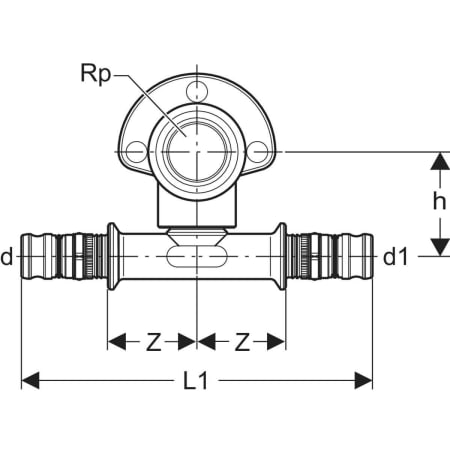

Art. no.
612.301.00.5
DN

15

d, ø

20 mm

Rp

1/2 ″

d1, ø

20 mm

arc

90 °

L

3.6 cm

L1

11.6 cm

l

1.8 cm

l1

1.3 cm

h

3.5 cm

Z

3.1 cm

Art. no.
612.302.00.5
DN

15

d, ø

20 mm

Rp

1/2 ″

d1, ø

20 mm

arc

90 °

L

5.2 cm

L1

11.6 cm

l

1.8 cm

l1

1.3 cm

h

3.5 cm

Z

3.1 cm

Technical data

Product material

Brass CW617N

Application purposes

Click on an application purpose to search more products

For chemicals and technical liquidsFor cold and hot potable waterFor cooling and heating water without antifreeze agentFor cooling and heating water with antifreeze agent
For compressed air (oil purity class 0–3)For negative pressureFor inert gases (e.g. nitrogen)For technical building systems, industry and shipbuilding

Application overviews

Application overview – Geberit Mepla

Characteristics

Click on a characteristic to search more products

Leaky if unpressedOffsetThree fastening pointsO-ring made of EPDM
Pressing nipple with transparent protective cap
