Logo for geberit brand

SG

With turn handle actuation

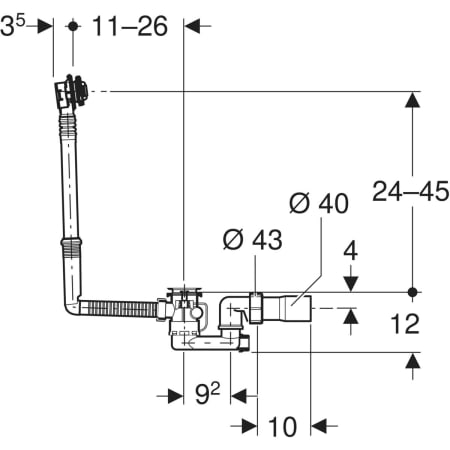

Geberit bathtub drain with turn handle, d52, length 26 cm, with ready-to-fit-set and straight connector

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
150.535.21.6
Colour / surface

chrome / glossy

DN

40

Technical data

Overflow discharge rate

0.6 l/s

Depth of water seal (mm)

50 mm

Application purposes

Click on an application purpose to search more products

For bathtubs made of steel, plastic or cast ironFor standard-size bathtubsFor bathtubs with valve hole ø 52 mm

Characteristics

Click on a characteristic to search more products

Quality-monitored in accordance with EN 274-3With overflowDouble-sided seals on drain and overflowOverflow head with extendible mount can be fastened

Scope of delivery

  • Waste outlet

  • Trap

  • Straight connector made of PE-HD, ø 43 mm

  • Ready-to-fit set

  • Protection box

  • Fastening material
