With turn handle actuation

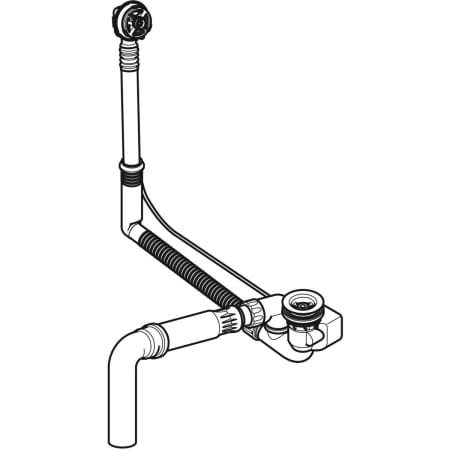

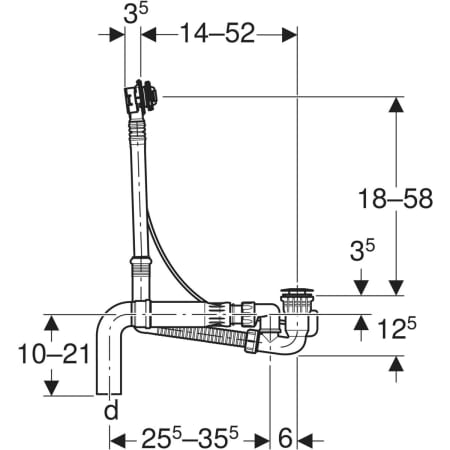

Geberit bathtub drain with turn handle, d52, length 52 cm, with straight connector with ball joint, counterflow principle

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
150.631.00.6
DN

40

d, ø

40 mm

56 mm

Technical data

Overflow discharge rate

0.6 l/s

Depth of water seal (mm)

50 mm

Application purposes

Click on an application purpose to search more products

For bathtubs made of steel, plastic or cast ironFor custom-size bathtubsFor bathtubs with valve hole ø 52 mm

Characteristics

Click on a characteristic to search more products

Fulfils requirements in accordance with DIN 274With overflowDouble-sided seals on drain and overflowOverflow head with extendible mount can be fastened

Scope of delivery

  • Waste outlet

  • Trap

  • Straight connector made of PE-HD, ø 56 mm, with ball joint

  • Connection bend 90°, made of PE-HD, ø 56 mm

  • Protection box

  • Fastening material

To order additionally

  • Ready-to-fit set

Accessories

Geberit ready-to-fit set d52, for bathtub drain with turn handle

Ready-to-fit-sets for turn handle actuation

Geberit ready-to-fit set d52, for bathtub drain with turn handle
