Phasing out
Has been replaced by art. no. 111.676.00.2
| Art. no. | 111.676.00.1 |
| B | 50 cm |
| H | 112–130 cm |
Phasing out

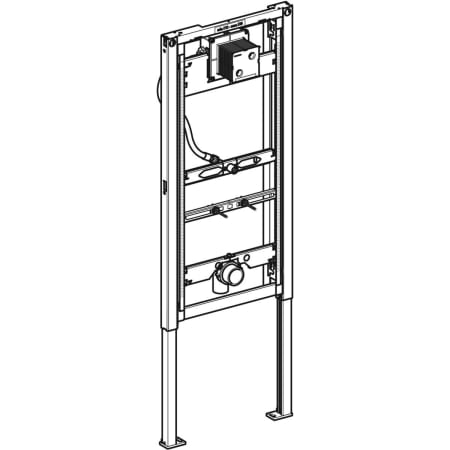

Geberit Duofix element for urinal, 112–130 cm, universal, for spray head
My list (0)
Technical data
Flow pressure 1–8 bar |
Water test pressure max. 16 bar |
Test pressure air / inert gas max. 3 bar |
Water temperature max. 30 °C |
Flow rate at 100 kPa / 1 bar without flow limiter 0.3 l/s |
Flow rate at 100 kPa / 1 bar with flow limiter 0.18 l/s |
Product material Steel |
Height-adjustable No |
Flow pressure 1–8 bar |
Water test pressure max. 16 bar |
Test pressure air / inert gas max. 3 bar |
Water temperature max. 30 °C |
Flow rate at 100 kPa / 1 bar without flow limiter 0.3 l/s |
Flow rate at 100 kPa / 1 bar with flow limiter 0.18 l/s |
Product material Steel |
Height-adjustable No |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Statically self-supporting frame, protected against corrosion with powder coatingFrame with ø 9 mm drilling holes for fastening in wood frame constructionGalvanized feetFeet adjustable 0–20 cmNon-slip leg supportsRotatable foot platesFoot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system railsElement height adjustable to urinal, 112–130 cmConnection positions for Preda urinal preparedConcealed housing for Geberit urinal flush controlsTerminal for electrical connection in concealed housingWater supply connection on the right, on the concealed housingWater supply connection compatible with MasterFix and MeplaFix
Elbow connector can be mounted without toolsPremounted stop valve with throttleWith built-in conduit pipe to rinse the pipelineProtection box for service opening 10.5 x 10.5 cm can be cut to length without toolsFlush hose can be bentFlush hose with guide to prevent standing waterFastening for inlet Rp 1/2", adjustable in height and sidewaysFastening for connection bend, height-adjustable and sound-absorbingUrinal fasteners M8 width- and height-adjustableCrossbars with centring marks, adjustable without toolsMarkings for connection positions of Preda and Selva urinalsAdditional fastening possible for urinal with accessories
Scope of delivery
Elbow tap connector R 1/2"
Protection box with cover
Protection plug
Connection bend made of PE-HD, ø 63 / 50 mm
Protective cap
Seal ø 57 / 50 mm
Urinal trap ø 50 mm, with seal on urinal
2 threaded rods M8
Fastening material
