Geberit installation set with throttle, for seawater, for urinal flush control, universal
My list (0)
Technical data
Flow pressure 1–8 bar |
Test pressure, water max. 16 bar |
Operating temperature, water max. 30 °C |
Flow rate at 1 bar without flow limiter 0.3 l/s |
Flow rate at 1 bar with flow limiter 0.24 l/s |
Minimum flow pressure 1 bar |
Relative humidity 95 % |
Calculated flow rate 0.3 l/s |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products

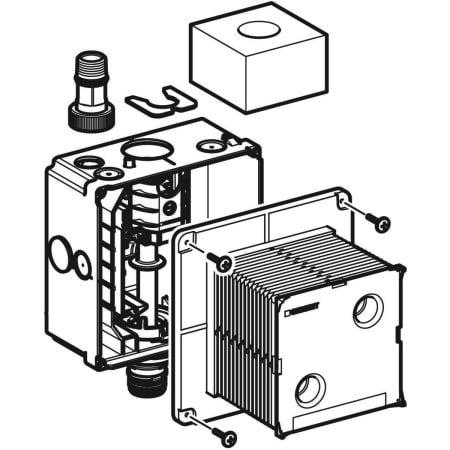

Scope of delivery
Protection box with cover
Water supply connection R 1/2"
Concealed housing
Stop valve with throttle
Conduit pipe
Terminal
