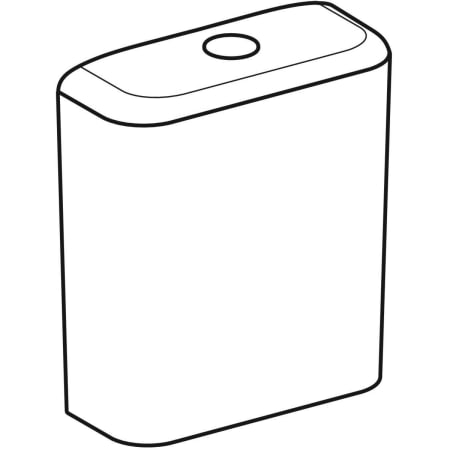

Geberit iCon Square exposed cistern, close-coupled, dual flush, bottom water supply connection
My list (0)
Technical data
Flush volume, factory setting 6 / 4 l |
Flush volume small, adjustment range 3 / 4 l |
Product material Sanitary ceramic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Mechanism
Documents
Your input does not return any results
Spare parts
Exposed cisterns, close-coupled, dual flush, bottom water supply connection (Geberit iCon, iCon Square, Smyle, Smyle Square)
Exposed cisterns, close-coupled, dual flush, bottom water supply connection (Geberit iCon, iCon Square, Smyle, Smyle Square)
2017 -
| # | Art. no. | Description | Replacement for |
|---|---|---|---|
| 1 | 816.418.00.1 | Geberit flat gasket for flush valve for exposed and concealed cistern: d=63mm, di=32mm | |
| 2 | 282.352.21.1 | Geberit Type 290 flush valve d50, dual flush: bright chrome-plated | |
| 2.1 | 243.627.21.1 | Geberit actuator for flush valve type 290: Model=Dual flush, bright chrome-plated | |
8 Articles
