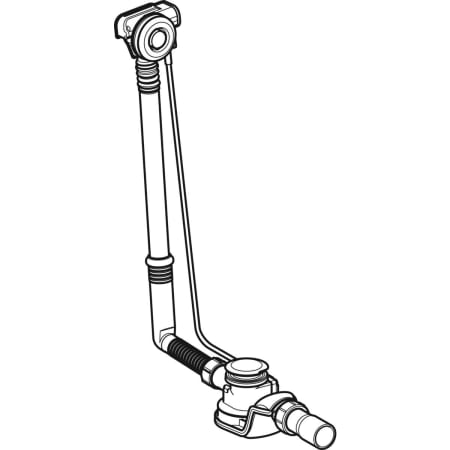

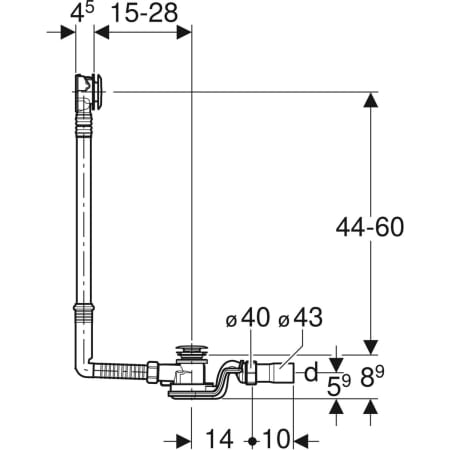

Geberit bathtub drain with push actuation PushControl, d52, height 60 cm, with ready-to-fit-set and straight connector
My list (0)
Technical data
Overflow discharge rate 0.65 l/s |
Depth of water seal 50 mm |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Waste outlet
Trap
Straight connector made of PE-HD, ø 43 mm
Ready-to-fit set
Protection box
Fastening material
Documents
Your input does not return any results
Spare parts
Bathtub drains with turn handle actuation PushControl, d52
Bathtub drains with turn handle actuation PushControl, d52
2008 -
| # | Art. no. | Description | Replacement for |
|---|---|---|---|
| 1 | 245.439.21.1 | Geberit waste plug for bathtub drain with push actuation: bright chrome-plated | 241.715.11.1, 241.715.21.1, 241.715.45.1, 241.715.46.1, 241.716.11.1, 241.716.21.1, 241.716.45.1, 241.716.46.1 |
| 1.1 | 241.400.00.1 | Geberit lip seal d40 | |
| 2 | 241.717.00.1 | Geberit waste outlet | |
