Articles
Click on the icon with the 3 dots to have more options for each item.
| Art. no. | 224.511.00.1 |
| B | 44 cm |
| H | 39.5 cm |
Geberit Omega concealed cistern 12 cm, 4 / 3 litres, installation height 82 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 4 / 3 l |
Full flush volume, adjustment range 3.5–7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Plastic |
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 4 / 3 l |
Full flush volume, adjustment range 3.5–7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products

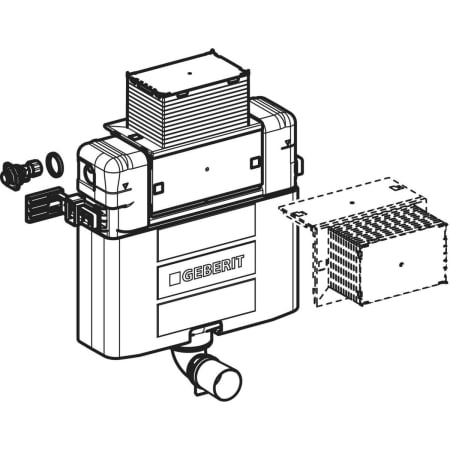

Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Flush bend extension, ø 45 mm
Protection plug
2 fixing brackets
Fastening material
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Installation instructions | - |
Other products
Spare parts
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.269.00.1 | Geberit angle stop valve for Sigma/Omega/Alpha concealed cisterns 12 cm and Kappa concealed cistern 15 cm | 240.177.00.1 | |
| 1.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread | ||
| 1.2 | 241.857.00.1 | Geberit counternut made of plastic | ||
