Geberit installation frame for Setaplano shower surface, up to 100 cm, for 4 feet

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

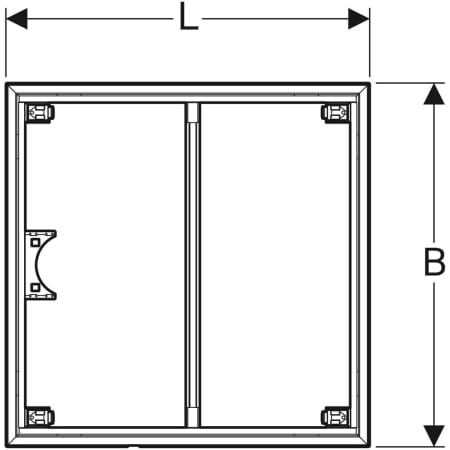

Art. no.	154.460.00.1
L	80 cm
B	80 cm

Art. no.	154.462.00.1
L	100 cm
B	80 cm

Additional information

For these installation frames, order 1 installation set with 4 feet
The installation manuals for the Geberit Setaplano shower surface and the installation frame for Setaplano shower surface are enclosed with the respective shower drains

Technical data

Product material

Powder-coated steel

Product material

Powder-coated steel

Application purposes

Click on an application purpose to search more products

For installation of Setaplano shower surfaces inside buildings For floor constructions up to top edge of the finished floor 6–25 cm For installation before or after introduction of the screed

Characteristics

Click on a characteristic to search more products

Premounted sound insulation insert Premounted retainer for foot fastener Premounted retainer for trap holder Height-adjustable from the top

Scope of delivery

2 prefabricated shuttering panels

To order additionally

Setaplano shower surface
