Floor drains 10 x 10 cm

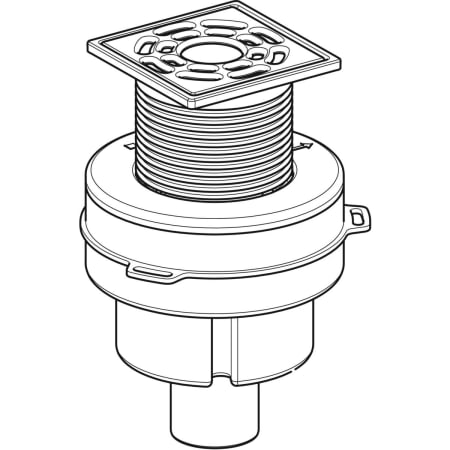

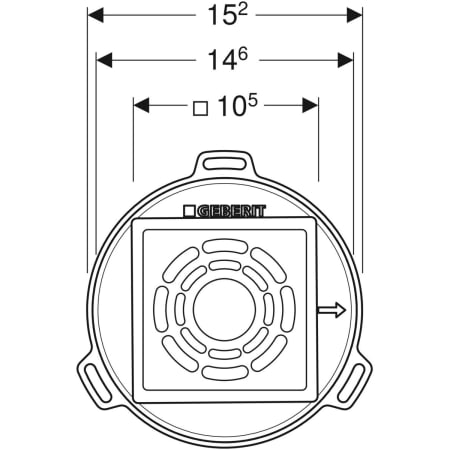

Geberit Aquorea floor drain with top piece made of PP, d50, for washing machine, 10 x 10 cm

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
388.016.00.1
DN

50

d, ø

50 mm

Technical data

Depth of water seal (mm)

50 mm

Product material

PP

Application purposes

Click on an application purpose to search more products

For use inside buildingsFor use as floor drain with vertical outlet

Characteristics

Click on a characteristic to search more products

Straight connector made of PE-HD, ø 50 mmDiaphragm trap made of siliconeIntegrated protection against dehydrationIntegrated protection against germ formation
Load-bearing capacity, class H 1.5 (1.5 kN)

Scope of delivery

  • Protection box

  • Grating

Documents

Aquorea floor drain, with inlet funnel made of PP, d50, slotted grating 10 x 10 cm
