Floor drains 10 x 10 cm
New

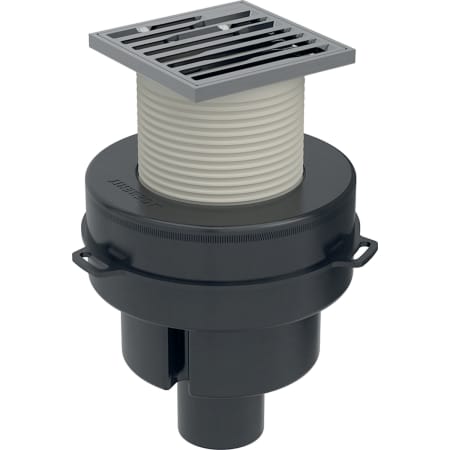

Geberit Aquorea floor drain with top piece made of PP, d50, slotted grating 10 x 10 cm

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Replaces art. no. 388.015.00.1

Art. no.
388.015.00.2
DN

50

d, ø

50 mm

Art. no.
388.015.QC.2
New
Colour / surface

black chrome

DN

50

Technical data

Depth of water seal (mm)

50 mm

Product material

PE-HD

Application purposes

Click on an application purpose to search more products

For use inside buildingsFor use as floor drain with vertical outlet

Characteristics

Click on a characteristic to search more products

Straight connector made of PE-HD, ø 50 mmDiaphragm trap made of siliconeIntegrated protection against dehydrationIntegrated protection against germ formation
Load-bearing capacity, class H 1.5 (1.5 kN)

Scope of delivery

  • Protection box

  • Grating

Documents
