Connections for heating

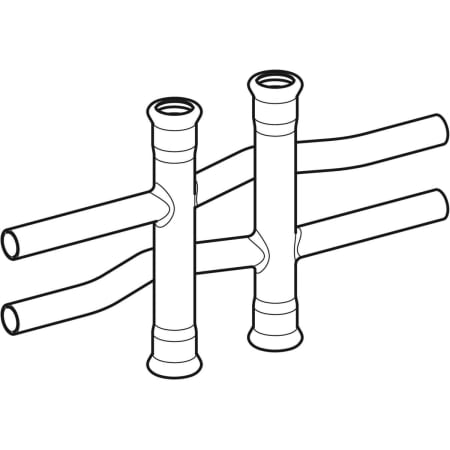

Geberit Mapress Carbon Steel connector pipe cross for inlet and return flow, long

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

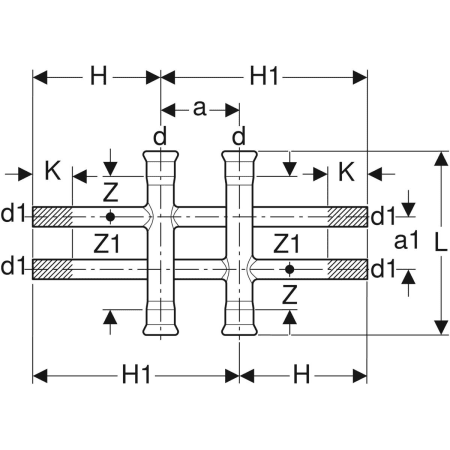

Art. no.
22964
DN

10

10

d, ø

12 mm

d1, ø

12 mm

arc

90 °

a

6 cm

a1

4 cm

L

14 cm

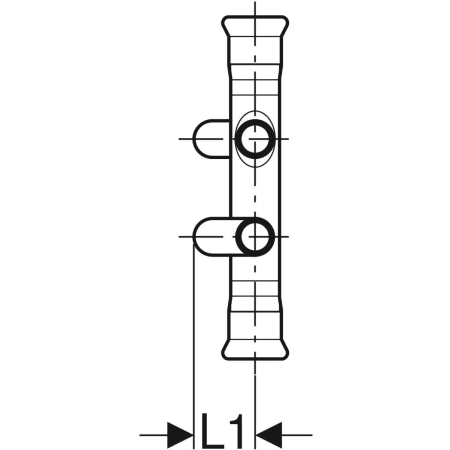

L1

1.9 cm

H

50 cm

H1

56 cm

Z

3.3 cm

Z1

7.3 cm

K

38 cm

Art. no.
22965
DN

12

10

d, ø

15 mm

d1, ø

12 mm

arc

90 °

a

6 cm

a1

4 cm

L

14 cm

L1

2.1 cm

H

50 cm

H1

56 cm

Z

3 cm

Z1

7 cm

K

38 cm

Art. no.
22966
DN

12

12

d, ø

15 mm

d1, ø

15 mm

arc

90 °

a

6 cm

a1

4 cm

L

14 cm

L1

2.4 cm

H

50 cm

H1

56 cm

Z

3 cm

Z1

7 cm

K

38 cm

Art. no.
22967
DN

15

10

d, ø

18 mm

d1, ø

12 mm

arc

90 °

a

6 cm

a1

4 cm

L

14 cm

L1

2.2 cm

H

50 cm

H1

56 cm

Z

3 cm

Z1

7 cm

K

38 cm

Art. no.
22968
DN

15

12

d, ø

18 mm

d1, ø

15 mm

arc

90 °

a

6 cm

a1

4 cm

L

14 cm

L1

2.5 cm

H

50 cm

H1

56 cm

Z

3 cm

Z1

7 cm

K

38 cm

Art. no.
22969
DN

20

10

d, ø

22 mm

d1, ø

12 mm

arc

90 °

a

6 cm

a1

4 cm

L

14 cm

L1

2.4 cm

H

50 cm

H1

56 cm

Z

2.9 cm

Z1

6.9 cm

K

38 cm

Art. no.
22970
DN

20

12

d, ø

22 mm

d1, ø

15 mm

arc

90 °

a

6 cm

a1

4 cm

L

14 cm

L1

2.7 cm

H

50 cm

H1

56 cm

Z

2.9 cm

Z1

6.9 cm

K

38 cm

Art. no.
22971
DN

25

10

d, ø

28 mm

d1, ø

12 mm

arc

90 °

a

6 cm

a1

4 cm

L

14 cm

L1

2.8 cm

H

50 cm

H1

56 cm

Z

2.7 cm

Z1

6.7 cm

K

38 cm

Art. no.
22972
DN

25

12

d, ø

28 mm

d1, ø

15 mm

arc

90 °

a

6 cm

a1

4 cm

L

14 cm

L1

3 cm

H

50 cm

H1

56 cm

Z

2.7 cm

Z1

6.7 cm

K

38 cm

Art. no.
22974
DN

32

12

d, ø

35 mm

d1, ø

15 mm

arc

90 °

a

6 cm

a1

4 cm

L

14 cm

L1

3.3 cm

H

50 cm

H1

56 cm

Z

2.4 cm

Z1

6.4 cm

K

38 cm

Technical data

Product material

Non-alloy steel 1.0034 E195 (EN 10305)

Application purposes

Click on an application purpose to search more products

For cooling and heating water without antifreeze agentFor cooling and heating water with antifreeze agentFor heating and cooling

Application overviews

Application overview – Geberit Mapress Carbon Steel

Characteristics

Click on a characteristic to search more products

Pressing indicatorLeaky if unpressedOutside zinc-platedSeal ring made of CIIR, black
Pressing socket with transparent protection plug
