Phasing out

Geberit Mapress Carbon Steel flange PN 6, with plain end

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Phasing out

Has been replaced by art. no. 23764

Art. no.
23732

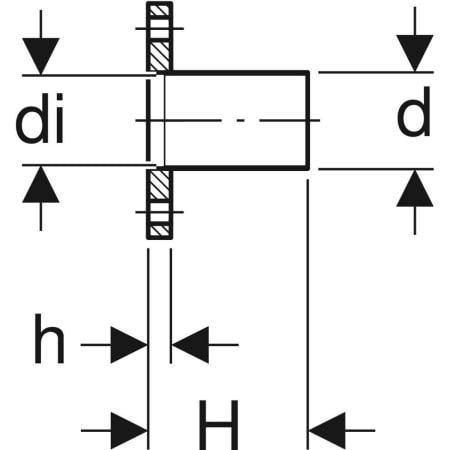

DN

20

d, ø

22 mm

di, ø

19 mm

D

9 cm

k

65 mm

m

11 mm

H

7.5 cm

h

1.4 cm

n

4 pc.

PN

6 bar

Phasing out

Has been replaced by art. no. 23765

Art. no.
23733
DN

25

d, ø

28 mm

di, ø

25 mm

D

10 cm

k

75 mm

m

11 mm

H

7.7 cm

h

1.4 cm

n

4 pc.

PN

6 bar

Phasing out

Has been replaced by art. no. 23766

Art. no.
23734
DN

32

d, ø

35 mm

di, ø

32 mm

D

12 cm

k

90 mm

m

14 mm

H

8.8 cm

h

1.6 cm

n

4 pc.

PN

6 bar

Technical data

Product material

Non-alloy steel 1.0034 E195 (EN 10305)
