| Art. no. | 152.063.00.1 |
| d, ø | 90 mm |

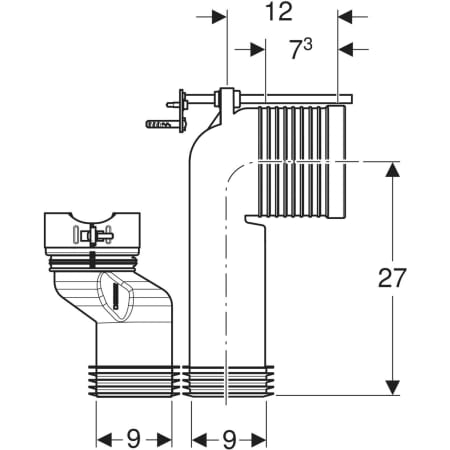

Geberit connection set for iCon floor-standing WC TurboFlush, vertical outlet
My list (0)
Technical data
Product material PVC / ABS |
Product material PVC / ABS |
Application purposes
Click on an application purpose to search more products

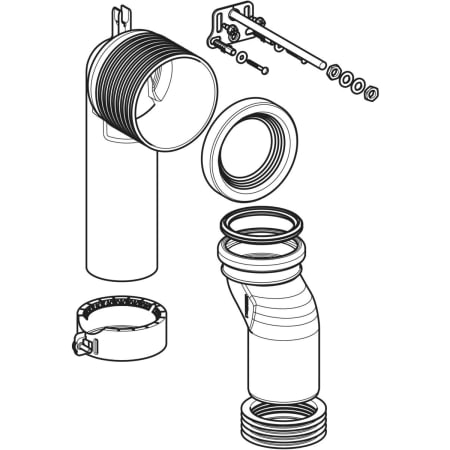

Scope of delivery
Connection bend 90° made of ABS, ø 120 / 90 mm
Straight connector made of PVC, ø 90 mm
Sleeve made of EPDM, ø 90 mm
Sleeve made of EPDM, ø 100 mm
Sleeve made of EPDM, ø 90 / 110 mm
Retaining claw
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Care instructions | Sanitary ceramic appliance | EN and 31 others | |
Installation instructions | Connection set for floor-standing WC, vertical outlet | - |
Sanitary ceramic appliance
EN and 31 others
Connection set for floor-standing WC, vertical outlet
