| Art. no. | 146.336.00.1 |
| Colour / surface | Design cover: chrome / matt |
| B | 36.5 cm |

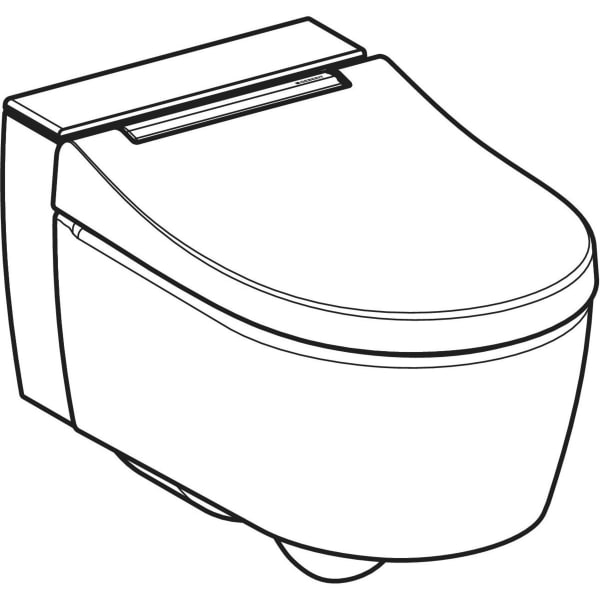

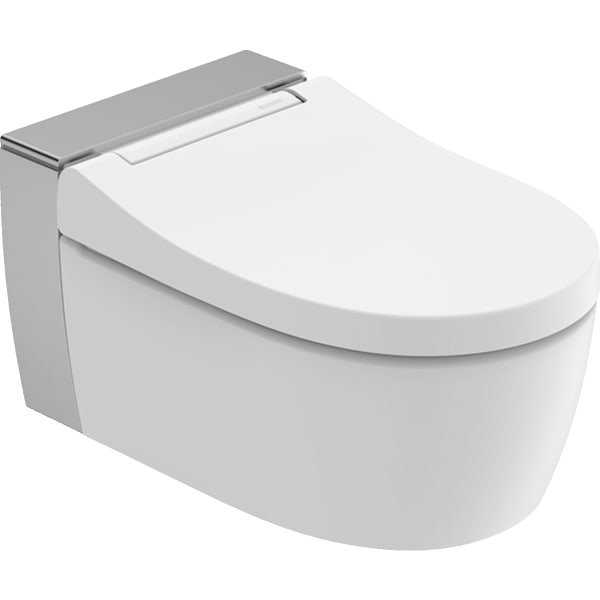

Geberit AquaClean Spina WC complete solution, wall-hung WC
My list (0)
Technical data
Degree of protection IPX4 |
Nominal voltage 220 V AC |
Mains frequency 50 Hz |
Flow pressure 0.8–8 bar |
Operating temperature 4–40 °C |
Water temperature, adjustment range 35–39 °C |
Minimum flow pressure 0.8 bar |
Calculated flow rate 0.01 l/s |
WC seat load max. 200 kg |
Odour extraction unit Yes |
SoftOpening No |
With WC seat ring heating Yes |
With orientation light No |
With dryer functionality Yes |
Degree of protection IPX4 |
Nominal voltage 220 V AC |
Mains frequency 50 Hz |
Flow pressure 0.8–8 bar |
Operating temperature 4–40 °C |
Water temperature, adjustment range 35–39 °C |
Minimum flow pressure 0.8 bar |
Calculated flow rate 0.01 l/s |
WC seat load max. 200 kg |
Odour extraction unit Yes |
SoftOpening No |
With WC seat ring heating Yes |
With orientation light No |
With dryer functionality Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Anal showerLady showerMassage spray with alternating hot and cold waterAdjustable shower water temperatureWater heating via continuous flow heaterSpray arm can be set to five different positionsAutomatic pre- and postrinsing of the spray nozzle with fresh waterRimless WC ceramic appliance featuring Rimfree flush technologyUser detectionWashdown WC with antibacterial ceramic glazeOrientation light can be set to three levelsOdour extraction unit with user recognition can be activated
Dryer can be activatedAdjustable oscillating spray (automatic forward and reverse motion of the spray arm)Adjustable dryer temperatureAdjustable temperature of the WC-seat heatingWC seat ring and WC lid with soft-closing mechanismFunctions and settings via remote controlWater supply connection on the left, hidden behind the WC ceramicMains connection with flexible three-core sheathed cable, on the right side, hidden behind the WC ceramicExternal water supply connection on the left possible with accessoriesExternal mains connection with power outlet on the right possibleReplaceable filter unit
Scope of delivery
Water supply connection set for Sigma and Omega concealed cisterns 12 cm, installation height 112 cm
Female socket for mains connection
Connection set for WC, ø 90 mm
Fastening material
Decorative cover
Remote control with wall-mounted holder
