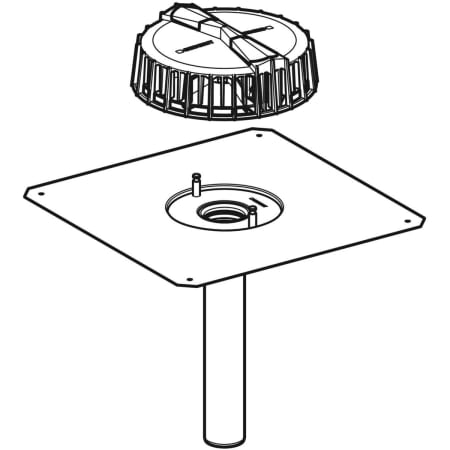

Geberit Pluvia roof outlet with contact sheet
My list (0)

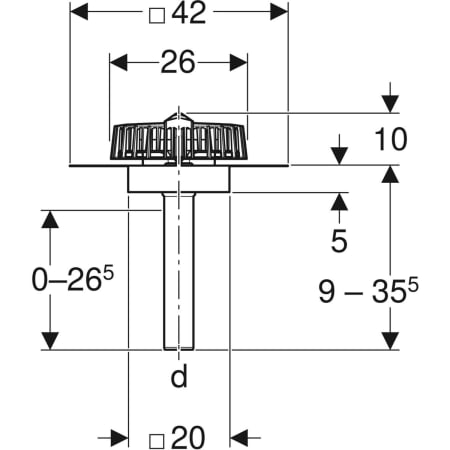

Technical data
Head of water max. 40 mm |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Outlet grating with function disc
Base unit with contact sheet made of CrNi steel 1.4301
Anticondensation insulation
Protection box cover
Documents
Your input does not return any results
Films
Spare parts
| # | Art. no. | Description | Remarks |
|---|---|---|---|
| 1 | 243.731.00.1 | Outlet grating for Geberit Pluvia roof outlets with discharge rate of 12 / 25 l/s | |
| 1.1 | 243.732.00.1 | Geberit function disc | |
| 3 | 243.734.00.1 | Lip seal for Geberit Pluvia emergency overflow and vapour barrier connection 12 litres | Only for art. nos. 359.114.00.1, 359.113.00.1 |
7 Articles
