Replaces art. no. 224.080.00.1
| Art. no. | 224.080.00.2 |
| B | 44 cm |
| H | 39.5 cm |

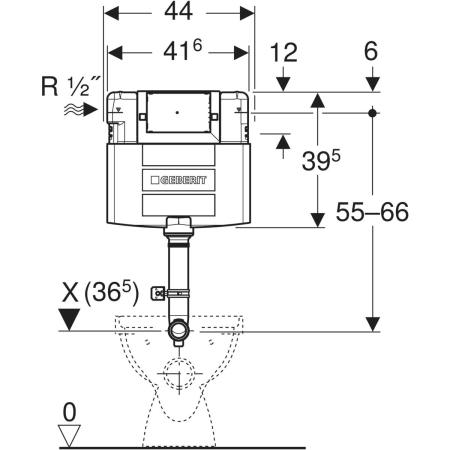

Geberit Alpha concealed cistern 12 cm, 5 / 3.5 litres, installation height 109 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 5 / 3.5 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Plastic |
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 5 / 3.5 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products

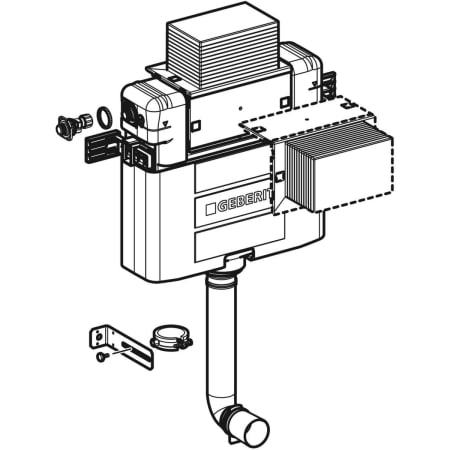

Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Flush bend extension, ø 45 mm
Protection plug
2 fixing brackets
Fastening material
