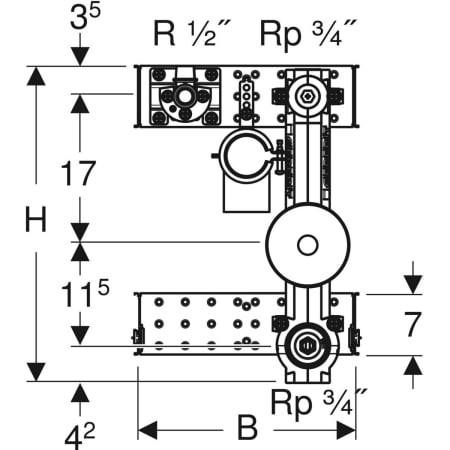

| Art. no. | 461.172.00.1 |
| B | 24.8 cm |
| H | 36.2 cm |
Geberit GIS washbasin set for deck-mounted tap, with one water meter section with concealed stop valve and connector T-piece
My list (0)
Technical data
Product material Steel |
Height-adjustable Yes |
Product material Steel |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products

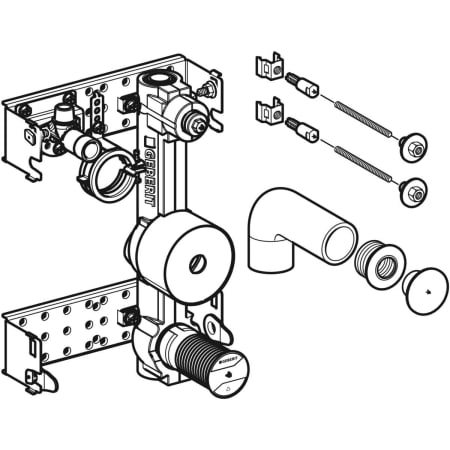

Scope of delivery
3 protective plugs with punching tip
Cover collar, chrome-plated
Colour markings (red, blue)
2 mounting clips M10
Elbow tap connector Rp 1/2" / R 1/2", compatible with MF
Sealing washer
Connection bend made of PE-HD, ø 50 mm
Seal ø 44 / 32 mm
2 threaded rods M10
Fastening material
Accessories
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Installation instructions | GIS washbasin, 1 concealed stop valve with 1 water meter section, DE | - | |
Technical data sheet | Connecting flange | EN and 2 others |
GIS washbasin, 1 concealed stop valve with 1 water meter section, DE
Connecting flange
EN and 2 others
Other products
Spare parts
| # | Art. no. | Description |
|---|---|---|
| 1 | 243.561.00.1 | Geberit sound insulation base set with bolts (2 pc.) |
| 3 | 243.712.00.2 | Geberit valve top set for concealed ball valve: DNV=20 |
| 4 | 243.660.00.1 | Geberit protection housing set, round, for concealed ball valve: DNV=20 |
