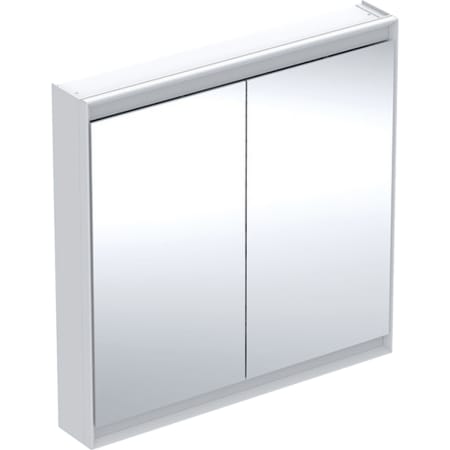

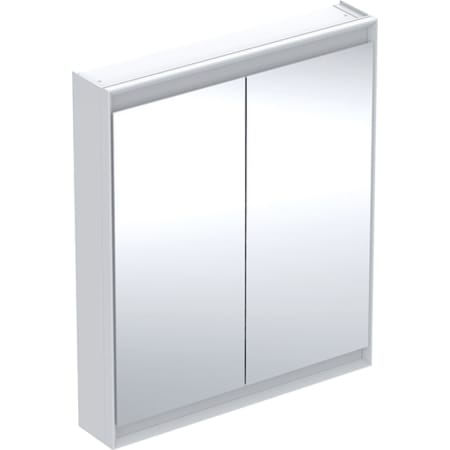

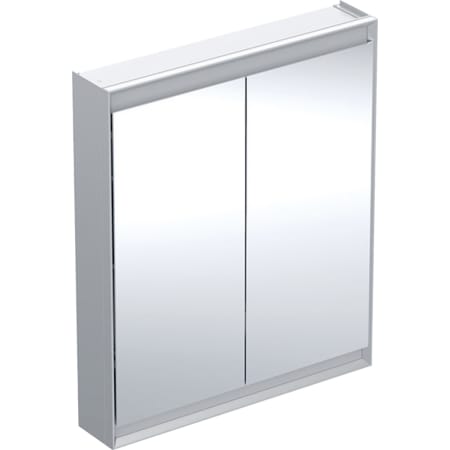

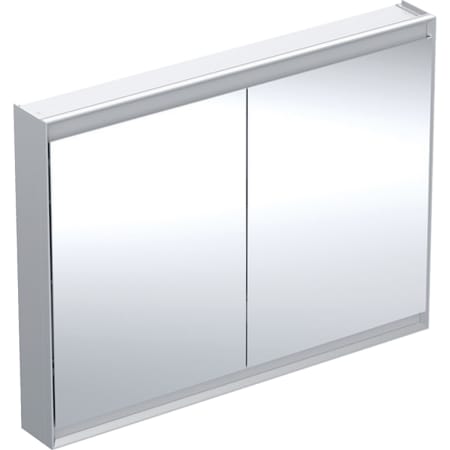

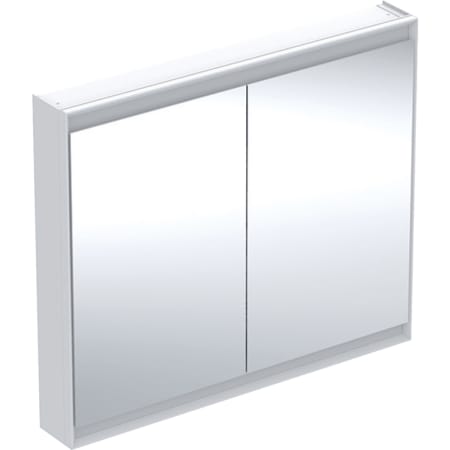

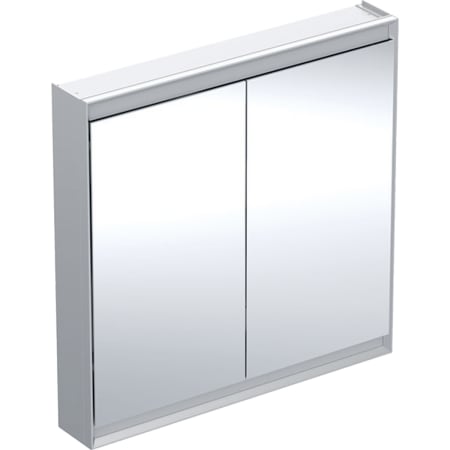

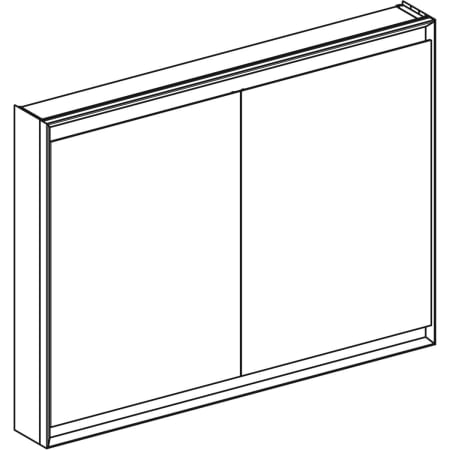

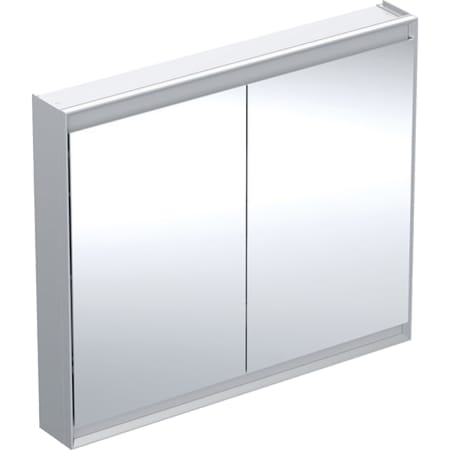

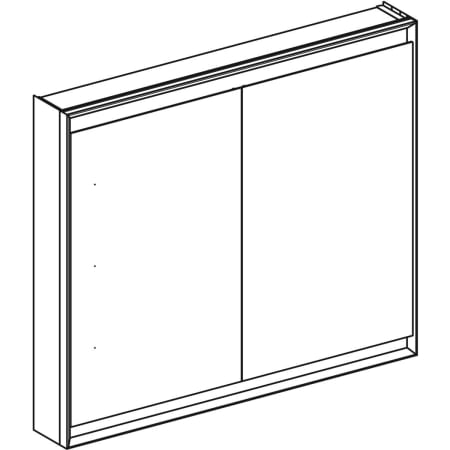

Geberit ONE mirror cabinet with ComfortLight and two doors, exposed installation, height 90 cm

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.	505.812.00.1
Colour / surface	anodised aluminium
B	75 cm

Art. no.	505.812.00.2
Colour / surface	white / powder-coated aluminium
B	75 cm

Art. no.	505.812.00.3
Colour / surface	anodised aluminium
B	75 cm

Art. no.	505.812.00.4
Colour / surface	white / powder-coated aluminium
B	75 cm

Art. no.	505.813.00.1
Colour / surface	anodised aluminium

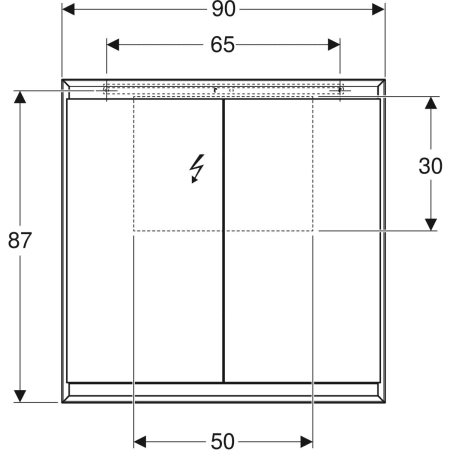

B	90 cm

Art. no.	505.813.00.2
Colour / surface	white / powder-coated aluminium
B	90 cm

Art. no.	505.813.00.3
Colour / surface	anodised aluminium
B	90 cm

Art. no.	505.813.00.4
Colour / surface	white / powder-coated aluminium
B	90 cm

Art. no.	505.814.00.1
Colour / surface	anodised aluminium

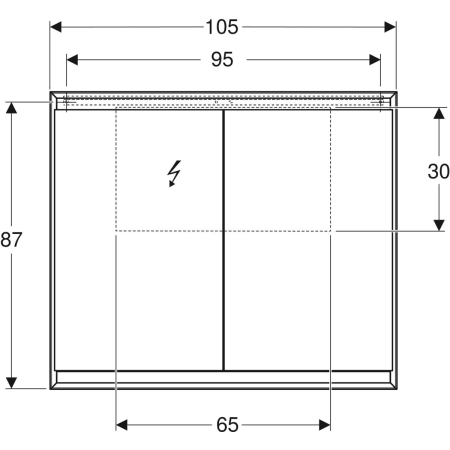

B	105 cm

Art. no.	505.814.00.2
Colour / surface	white / powder-coated aluminium
B	105 cm

Art. no.	505.814.00.3
Colour / surface	anodised aluminium
B	105 cm

Art. no.	505.814.00.4
Colour / surface	white / powder-coated aluminium
B	105 cm

Art. no.	505.815.00.1
Colour / surface	anodised aluminium

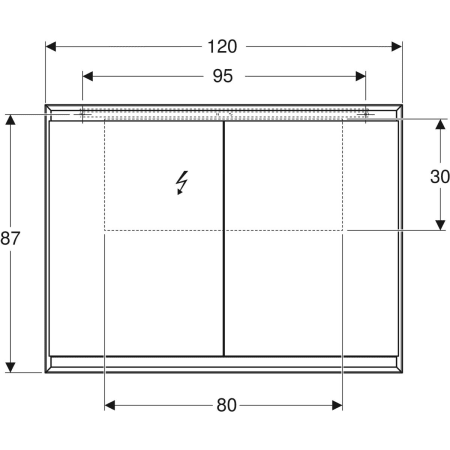

B	120 cm

Art. no.	505.815.00.2
Colour / surface	white / powder-coated aluminium
B	120 cm

Art. no.	505.815.00.3
Colour / surface	anodised aluminium
B	120 cm

Art. no.	505.815.00.4
Colour / surface	white / powder-coated aluminium
B	120 cm

Additional information

Standard actuation via mirror cabinet and room push-button. Actuation via room switch must be changed accordingly in the Geberit Home app

Technical data

Degree of protection	IP44	Degree of protection IP44
Nominal voltage	230 V AC	Nominal voltage 230 V AC
Mains frequency	50 Hz	Mains frequency 50 Hz
Operating voltage	24 V DC	Operating voltage 24 V DC
Product material	Aluminium	Product material Aluminium
Light source energy efficiency class	E	Light source energy efficiency class E

Light colour	2200–4000 K	Light colour 2200–4000 K
Service life of LED lighting max.	72000 h	Service life of LED lighting max. 72000 h
Measuring method	L80B10	Measuring method L80B10
Colour rendering index	90	Colour rendering index 90
Standard deviation of colour matching	3 SDCM	Standard deviation of colour matching 3 SDCM

Degree of protection	IP44	Degree of protection IP44
Nominal voltage	230 V AC	Nominal voltage 230 V AC
Mains frequency	50 Hz	Mains frequency 50 Hz
Operating voltage	24 V DC	Operating voltage 24 V DC
Product material	Aluminium	Product material Aluminium
Light source energy efficiency class	E	Light source energy efficiency class E
Light colour	2200–4000 K	Light colour 2200–4000 K
Service life of LED lighting max.	72000 h	Service life of LED lighting max. 72000 h
Measuring method	L80B10	Measuring method L80B10
Colour rendering index	90	Colour rendering index 90
Standard deviation of colour matching	3 SDCM	Standard deviation of colour matching 3 SDCM

Characteristics

Click on a characteristic to search more products

With ComfortLight LED lighting Indirect lighting Internal lighting Lighting mood infinitely adjustable from orientation light to daylight Functions can be triggered via touch sensor DALI-compatible control

Compatible with Geberit Home App Time slot in desired luminous intensity adjustable with Geberit Home App With two doors Doors mirrored on both sides With two power sockets Power sockets mounted on the internal side at the top left and top right Continuously movable glass shelves

Scope of delivery

3 glass shelves
Dummy cover for power socket left or right
Mounting material
