Additional information
- Only use original Milwaukee rechargeable battery: art. no. 48-11-2420, M12™ REDLITHIUM™ CP2.0

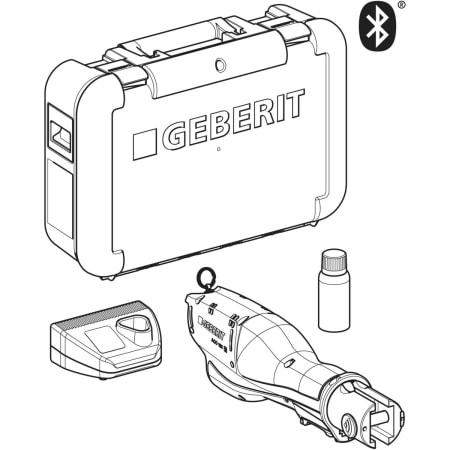

Geberit ACO 103plus pressing tool [1], without rechargeable battery, in case
My list (0)
Technical data
Nominal force 19 kN |
Protection degree IP20 |
Operating voltage 12 V DC |
Rechargeable battery type Lithium-ion battery |
Operating temperature -20 – +60 °C |
Operating temperature, rechargeable battery -10 – +50 °C |
Sound pressure level 75.5 dB(A) |
Sound power level max. 86.5 dB(A) |
Vibration emission value max. 2.5 m/s² |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Battery-operated pressing tool [1], 12 V DC
Battery charger
Cleaning agents and lubricants
Case
To order additionally
Lithium-ion rechargeable battery 12 V
Documents
Spare parts
![Pressing tools ACO 103plus [1]](https://images.data.geberit.com/image/upload/44/28/DAS_884428_20231114_073049.jpg)
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 691.134.00.1 | Geberit case for pressing tools [1], battery operation, with insert 10A-IV: ABS | From case insert 10A-I | |
| 1.1 | 691.130.00.1 | Geberit carrying handle for case: ABS | ||
| 1.2 | 691.131.00.1 | Geberit set of recessed handles for case (2 pc.): ABS | ||
