With electronic flush actuation, battery operation

Phasing out

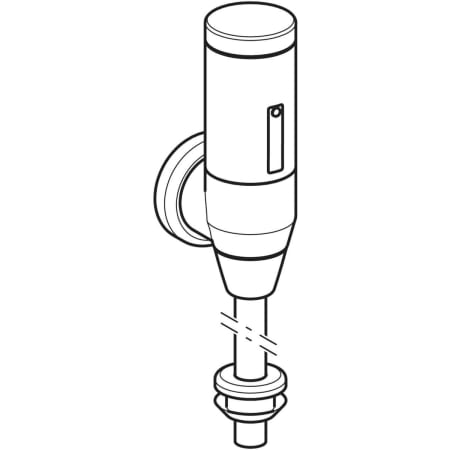

Geberit pressure flushing valve for urinal with electronic flush actuation, battery operation, for surface mounting

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Technical data

Battery type

CR-P2 (6 V)

Protection degree

IP45

Operating voltage

6 V DC

Flow pressure

1–10 bar

Test pressure, water max.

16 bar

Operating temperature, water max.

30 °C

Calculated flow rate

0.4 l/s

Minimum flow pressure for calculated flow rate

1 bar

Interval flush, adjustment range min.

24 / 48 / 0 h

Interval flush, factory setting

0 h

Detection time, factory setting

7 s

Flush time, adjustment range

2–30 s

Flush time, factory setting

7 s

Product material

Chrome-plated

Application purposes

Click on an application purpose to search more products

For automatic flush actuation of urinals For replacing manual surface-mounted urinal flushing valves For renovations, conversions and new buildings For concealed water supply connections at the rear

For rooms with low minimum distance to opposite wall

Characteristics

Click on a characteristic to search more products

Reliable IR distance detection Self-adjusting IR sensor Infrared user detection with background fade-out Flush time can be set manually

Adjustable interval flush Battery-operated Warning when the battery is low Valve-closing function when battery is flat

Scope of delivery

Tap housing
Infrared control
Solenoid valve
Lithium battery, type CR-P2, 6 V
Wall connection flange R 1/2"

Documents

Your input does not return any results

Spare parts

Pressure flushing valve for urinal with electronic flush actuation, battery operation, for surface mounting

2022 -

#	Art. no.	Description	Remarks
1	245.731.00.1	Geberit water supply connection for exposed flushing valve
2	240.797.00.1	Geberit solenoid valve, bistable, 3 W / 6 V
3	242.666.00.1	Geberit lithium battery, type CR-P2, 6 V	(commercially available)

Open detail page

8 Articles
