For battery operation, for Geberit Sigma concealed cisterns 12 cm

Geberit HS05 hygiene flush unit for Sigma concealed cistern 12 cm, battery operation

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.	116.110.00.6
Power consumption	≤ 4 W

Technical data

Battery type	LR20	Battery type LR20
Degree of protection	IP45	Degree of protection IP45
Operating voltage	3 V DC	Operating voltage 3 V DC
Power consumption in standby mode	0.15 W	Power consumption in standby mode 0.15 W
Radio frequency	868.4 MHz	Radio frequency 868.4 MHz
Radio frequency distance	10 m	Radio frequency distance 10 m

Interval flush, adjustment range	1–168 h	Interval flush, adjustment range 1–168 h
Interval flush, factory setting	72 h	Interval flush, factory setting 72 h
Interval flush time, adjustment range	1–200 s	Interval flush time, adjustment range 1–200 s
Interval flush time, factory setting	5 s	Interval flush time, factory setting 5 s
Product material	Plastic	Product material Plastic

Battery type	LR20	Battery type LR20
Degree of protection	IP45	Degree of protection IP45
Operating voltage	3 V DC	Operating voltage 3 V DC
Power consumption in standby mode	0.15 W	Power consumption in standby mode 0.15 W
Radio frequency	868.4 MHz	Radio frequency 868.4 MHz
Radio frequency distance	10 m	Radio frequency distance 10 m
Interval flush, adjustment range	1–168 h	Interval flush, adjustment range 1–168 h
Interval flush, factory setting	72 h	Interval flush, factory setting 72 h
Interval flush time, adjustment range	1–200 s	Interval flush time, adjustment range 1–200 s
Interval flush time, factory setting	5 s	Interval flush time, factory setting 5 s
Product material	Plastic	Product material Plastic

Application purposes

Click on an application purpose to search more products

For preventing stagnation in drinking water pipes For preventing contamination For installation in Sigma concealed cisterns 12 cm For releasing a single or dual flush via the actuator plate

For solid and drywall construction

Characteristics

Click on a characteristic to search more products

Single or dual flush can be triggered via actuator plate Can be combined with Sigma01 to Sigma50 actuator plates or Geberit cover plates Battery-operated Batteries in closed battery compartment in the flushing cistern With push-fit connection with cross-polarity protection Interval flush preset Adjustable interval flush

Device settings and operation with mobile device via integrated Bluetooth® interface Compatible with Geberit Control App Wirelessly connectable with Geberit Gateway via Bluetooth®Compatible with Geberit Connect Low-noise lifting mechanism Electrical lifting device, self-calibrating

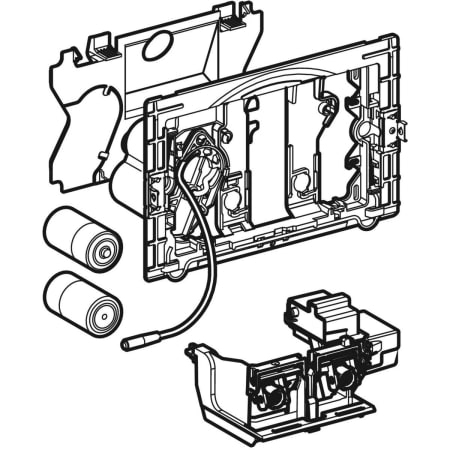

Scope of delivery

Mounting frame with battery compartment, premounted
Protection plate
Support block with servomotor and lifting device, premounted
Electrical control

2 alkaline manganese batteries LR20, each 1.5 V

To order additionally

Actuator plate
